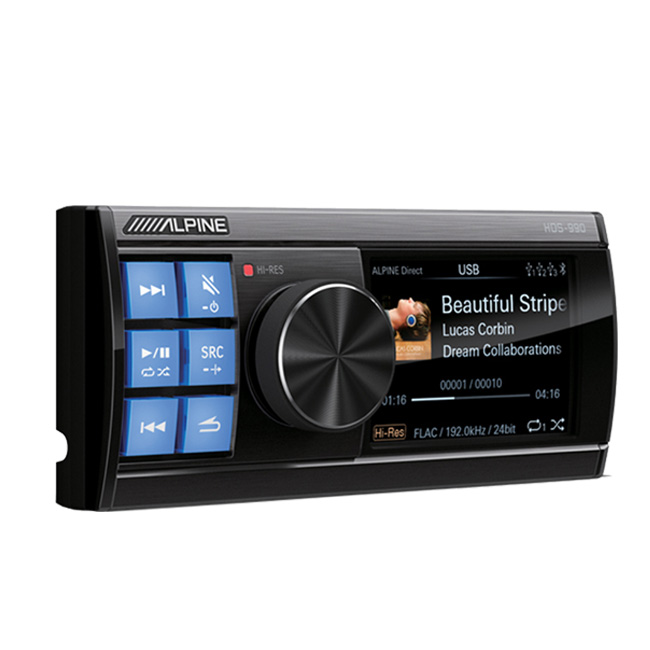

The HDS-990 is the best way to bring Hi-Res Audio sources into your Alpine Status system and control all settings. It uses a compact system control panel with a hide-away black box for excellent installation flexibility. The hi-res color display shows all playback data including album cover artwork. It also includes a 6-Ch 31-band EQ, X-Over, and Digital Time Correction

General Features:

- high-resolution digital media player (does not play discs)

- no AM/FM radio tuner

- black box source unit and dash-mountable commander unit with wiring harnesses for connection between the two and to -- - factory radios (if desired)

- built in amplifier: 25W x 4 RMS (50W x 4 max)

- source unit not designed to work in most dash openings

Smartphone Features:

- built-in Bluetooth for audio streaming (does not allow for hands-free calling)

- compatible with AAC, aptX/aptX HD, LDAC, and SRC formats for streaming audio

Audio Features:

- audiophile-grade components, materials, and construction

- plays AAC, AIFF, ALAC, APE, DSD, FLAC, LDAC, MP3, M4A, WMA, and WAV files up to 24-bit/192kHz resolution with wired -connection

-high-resolution indicator light on commander unit

Expandability:

- inputs: 3 USB ports (1 front, 2 rear); rear 3.5mm auxiliary input ; 4-channel high-level analog input

- outputs: digital coaxial output; digital optical output; 4-channel high-level analog output; 6-channel preamp outputs (4-volt ---- front, rear, sub)

Other Info:

source unit dimensions: 7"D x 5-11/16"W x 2"H

commander unit dimensions: 4-13/16"W x 2-1/8"H

Frequency response

- Hi-Resolution: 192kHZ/24bit playback, wired or wireless

Power handling

- 25Wx4 Hi-Resolution amplified output options

- High-performance RCA

- Optical

- WAV, APE, FLAC, ALAC, AIFF, M4A, AAC, WMA, MP3, DSD​

Design

- Compact controller with a separate black box for flexible installation​
