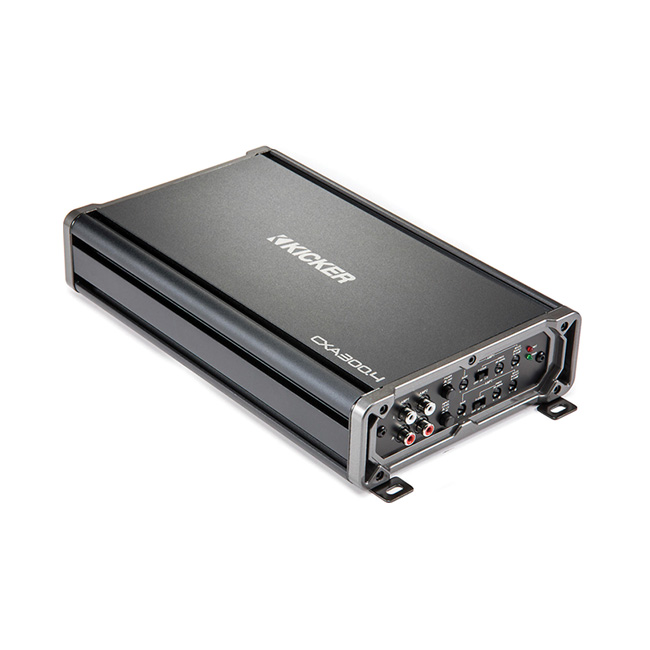

KICKER CX-SERIES Performance Amplifiers
CX Series amps reach massive power levels thanks to the highest-grade internal components available. Huge heat sinks keep the amp cool, and an optional remote level control lets you adjust your bass right from the dash. It has become standard for KICKER amplifiers to come in the most compact package allowable, and CX Amps are no different. Featuring an optimized circuit layout for the most efficient use of components and clearest sound quality, CX Amps set the curve of smaller footprints with monoblock models measuring under 12-1/2 inches long. Engineers also have found another way for CX Amps to remain inconspicuous in an installation by supplying hardware that enables a vertical mounting option if preferred. The highest-grade components and surface-mount technology allow these amps to perform at a level others fail to reach. Under the high-mass, super-cooling heat sink (that's also UV protected), the technology is staggering. Double-sided fiberglass circuit boards, Litz-wound transformers that minimize power loss and maximize transfer, TO218 output devices for high-current switching, buffered RCA outputs on bass amps, noise-shielding metal-end panels, custom-tooled power connectors - it's uncompromising, oversized components that make CX Amps some of the most reliable, high-performing equipment in the industry. Users can take advantage of built-in crossovers and adjustable KickEQ™ processing for dialing in perfect sound, and the CXARC Remote Bass Control dictating bass volume level. A 3-second, turn-on delay eliminates additional interference, low-voltage LEDS, and auto-reset protection are some of the other features utilized by dependable CX Amps.

This CX-Series Amplifier delivers as much as 90 watts into four full-range channels, or 180 watts into two bridged channels. See below for more details.

• Class A/B full-range channels
• Three-second turn-on/off delay to eliminate unwanted interference
• Variable 12dB crossovers provides control to dial in perfect sound
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
• Accepts up to 40-volt input signal
• Small footprint for easier installation
• Vertical mounting hardware included for another unique look
• Compatible with CXARC Remote Bass Control (AMP2 must be in LO-PASS X-OVER mode)

PRODUCT SPECIFICATION

• Brand : Kicker CX Series
• Model : 43CXA300.4
• Type : 4 Channel
• Class : A/B
• Power 2 Ohm : 75W x 4
• Power 4 Ohm : 40W x 4
• Power 4 Ohm bridged MONO : 150W x 2
• Low-Pass Crossover Frequency : 50-200 Hz
• Low-Pass Slope (dB/octave) : 12 dB/octave
• High-Pass Crossover Frequency : 50-200 Hz
• High-Pass Slope (dB/octave) : 12 dB/octave
• Bass Boost : 0-12 dB
• Fuse Rating : 40A
• Product Size (cm) : L32 x W18 x H6

WHAT'S IN THE BOX

• 4-Channel amplifier
• 2 Vertical mounting brackets
• 4 Self-tapping screws (3/4" length)
• Owner's Manual
• Certified Power certificate
