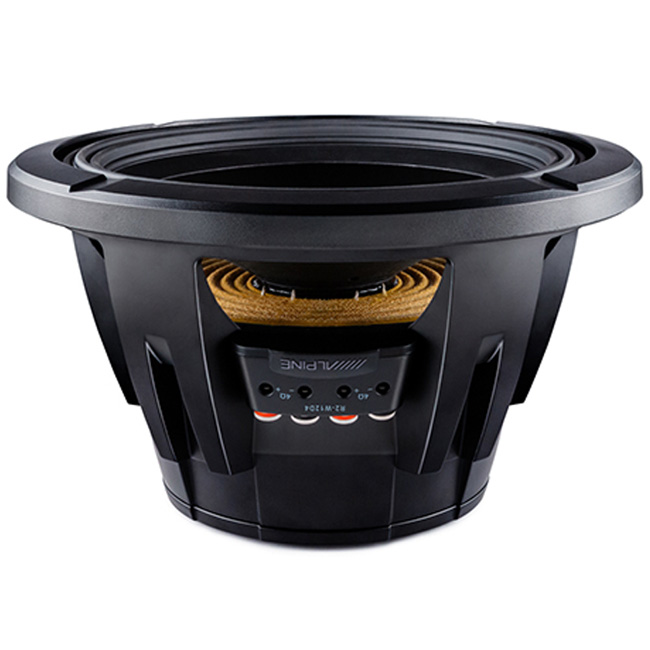

Next-Generation 12-inch R-Series Subwoofer with Dual 4-Ohm Voice Coils

The next generation of sound performance is here with the 2nd-Gen R-Series Subwoofers featuring a larger motor structure for more accurate and authoritative bass.

Specifications

- 750W RMS

- 2250W Peak Power Handling

- Frequency Response: 24Hz-200Hz

- Sensitivity (1W/1m): 84.5dB

- Nominal Impedance: 4Ω + 4Ω

- Voice Coil: 65mm 

- X-Max: 20mm

- Magnet Weight: 144oz

- Mounting Depth: 6-1/2” (152mm)

- Cutout Size: 10-7/8” (231mm)

- Push-Type Speaker Terminals (Up to 8AWG Wire Size)

- CTA-2031 Compliant

Features

- Dual Voice Coil (DVC) Subwoofers with Configuration Jumpers

- Polypropylene/Ceramic Composite Dust Cap

- Kevlar Reinforced Pulp Cone High-Performance subwoofers

- Twist-Lock Grille Mount System

- High-Amplitude Multi-Roll (H.A.M.R.) Surround

- Large Double-Stacked Magnets
